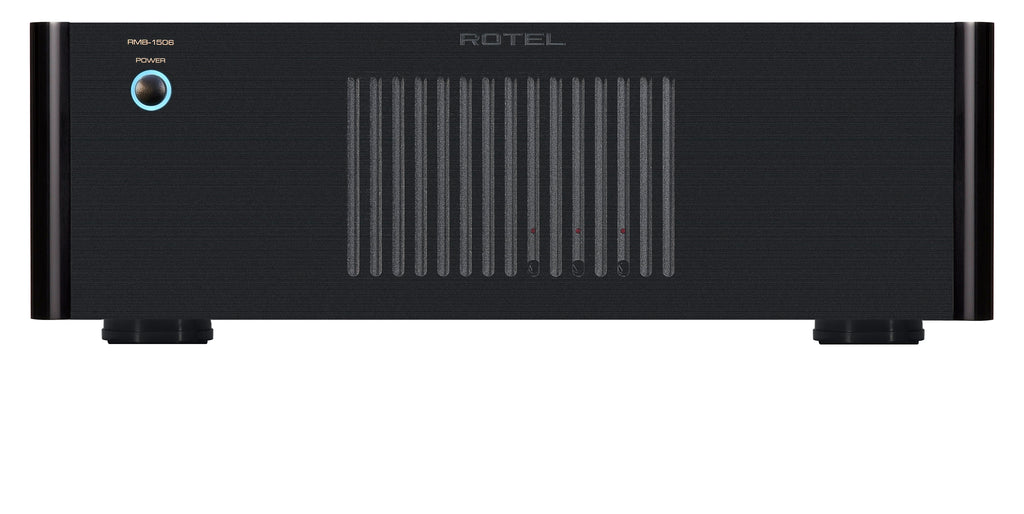

RMB-1506 6-Channel Distribution Amplifier


RMB-1506 6-Channel Distribution Amplifier


Available Finishes: Black Where to buy
  • This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

    *Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.

    For more detailed information on the Rotel RMB-1506 6-Channel Custom Installation Amplifier, click here.

  • Power Output - All channels driven: 50 watts x 6/ch (20-20 kHz, 0.03% THD, 8 ohms) / 100 watts x 6/ch (20-20 kHz, 0.03% THD, 4 ohms)
    THD (20-20,000Hz) 8 ohms, all channels driven: < 0.03%
    IM Distortion: < 0.03%
    Damping Factor (8 ohms): >200
    Input Sens. / Impedance: 1.0 V / 20 k Ohms
    Frequency Response (+/-1 dB): 10Hz-100kHz
    S/N Ratio (IHF A): 115 dB
    Power Consumption: 450 Watts
    Dimensions (W x H x D): 431 x 144 x 424 mm
