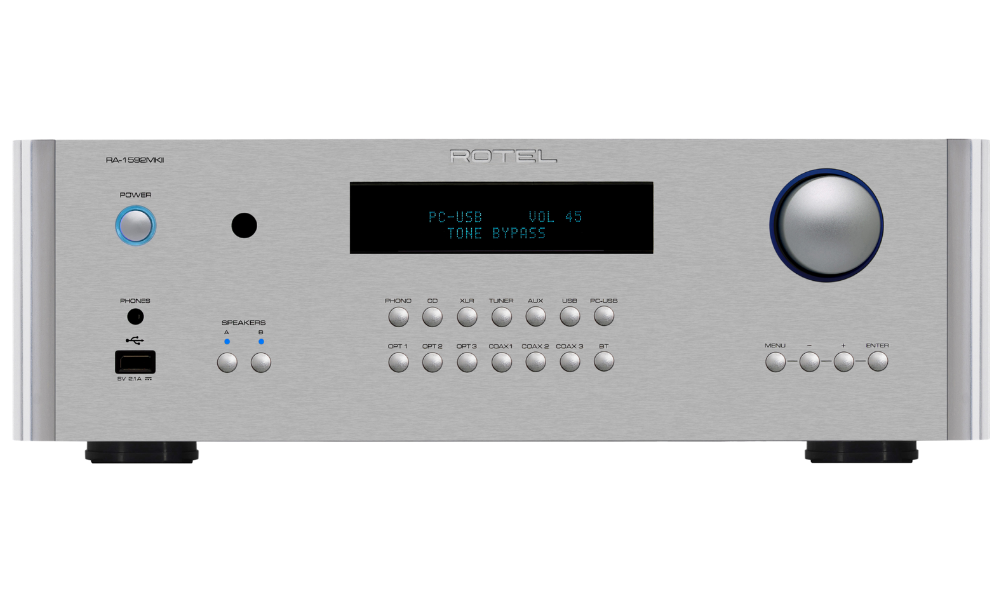

RA-1592 MK II Integrated Amplifier

Rotel

RA-1592 MK II Integrated Amplifier

$4,299.00

Available Finishes: BlackSilver Where to buy
  • Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.

    Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.



    The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.

    Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.

    The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.

    The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

    Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.

    Convenience, performance and value - the RA-1592MKII delivers.

  • CONTINUOUS POWER OUTPUT
    200W/Ch (All channels driven, 8Ω)



    TOTAL HARMONIC DISTORTION (THD)
    (20Hz–20kHz) < 0.008%



    FREQUENCY RESPONSE
    Line Level Inputs: 10Hz - 100kHz ±0.5dB
    Digital Inputs: 10Hz - 90kHz ±2dB
    Phono Input: 20Hz - 20kHz ±0.5dB



    S/N RATIO (IHF "A" Weighted)
    Line Level Inputs: 103dB
    Digital Inputs: 102dB
    Phono Input: 80dB



    DAMPING FACTOR
    600



    INPUT SENSITIVITY
    Line Level Inputs (RCA): 340mV
    Line Level Inputs (XLR): 540mV
    Phono Input (MM): 5.2mV



    INPUT IMPEDANCE
    Line Level Inputs (RCA): 100kΩ
    Line Level Inputs (XLR): 100kΩ
    Digital Inputs: 75Ω
    Phono Input (MM): 47kΩ



    INPUT OVERLOAD
    Line Level Inputs (RCA): 3.5V
    Line Level Inputs (XLR): 5.5V
    Phono Input: 52mV



    PREOUT LEVEL
    1.9V



    OUTPUT IMPEDANCE
    100Ω



    TONE CONTROLS
    ±12dB at 100Hz / 10kHz



    COAX/OPTICAL DIGITAL INPUT SIGNALS
    LPCM (Up to 24-bit/192kHz)



    PC-USB
    USB Audio Class 1 (up to 24-bit /96 k Hz)
    USB Audio Class 2 (up to 32-bit/384 k Hz)
    DSD and DoP support
    MQA and MQA Studio (up to 24-bit / 384k Hz )



    DIMENSIONS (W × H × D)
    431 × 144 × 425mm
    17" × 5.7" × 16"



    FRONT PANEL HEIGHT
    3U / 132.6mm (5.25")



    POWER REQUIREMENTS
    230V, 50Hz



    POWER CONSUMPTION
    500W



    STANDBY POWER CONSUMPTION
    <0.5W



    NET WEIGHT
    17.63kg (37lbs.)



    BTU RATING
    1239 BTU/h
