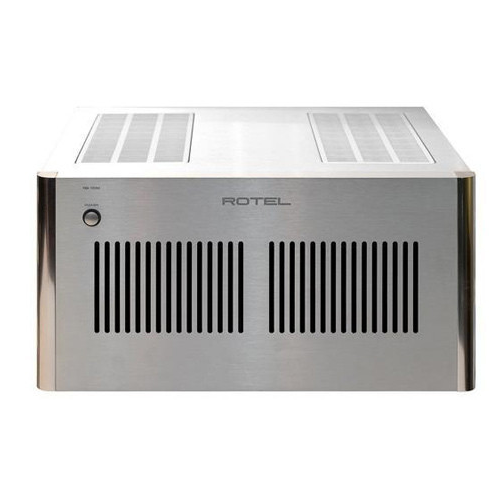

The RMB-1585, Rotel’s new flagship theatre amplifier, provides both the massive power and sonic sophistication required by the finest home theatre systems. With five channels, each capable of producing 200 continuous watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

But it isn’t just pure output power that distinguishes the RMB-1585. It’s the ability to reproduce both the dynamics of a Hollywood blockbuster and the musical nuances of acoustic instruments that sets it apart. Where does this balance come from? It’s a direct result of Rotel’s celebrated Balanced Design Concept in which circuit topology and parts selection meld in the pursuit of sonic excellence.

For more detailed information on the Rotel RMB-1585 Multichannel Power Amplifier, click here.

Continuous Power Output (20-20kHz, < 0.03%, 8 ohms): 200 watts/channel, 5 channel driven

Total Harmonic Distortion (20Hz-20kHz, 8 ohms): < 0.03%

Intermodulation Distortion (60Hz : 7kHz, 4:1): < 0.03%

Frequency Response (+0.5, –3 dB): 10Hz - 100kHz

Damping Factor (20-20,000Hz, 8 ohms): 260

Speaker Impedance: 4 ohms minimum

Signal to Noise Ratio (IHF A network): 116 dB

Input Impedance/Sensitivity

Unbalanced: 12k ohms/1.9 volt

Balanced: 50k ohms/3.8 volt

Gain: 26.5 dB

Power Requirements: US - 120 volts, 60Hz / EU - 230 volts, 50Hz

Power Consumption: 800 watts

Dimensions: 431 x 237 x 454mm

Front Panel Height: 5U / 221mm

Weight (net): 36kg
